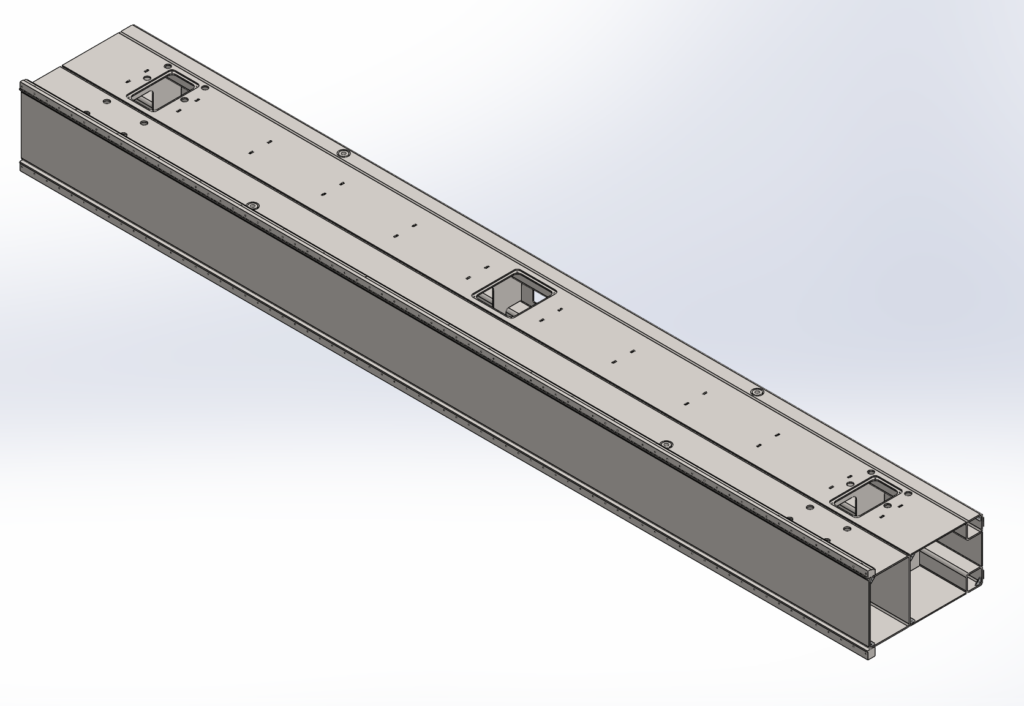

New Y-axis beam of a new type of CNC machine.
Expectations
Maximum stiffness with minimum weight, taking into account the customer’s manufacturing capabilities.
My role:
- Concept development and optimization of the beam structure
- Multiple FEM analyses (stiffness vs. mass)
- Generation of several variants of the new beam
- Comparative FEM analysis of proposed solutions
- Selection of a single solution
- Proposal of further modifications to optimize results
- Comparative FEM analysis of proposed solutions
- Selection of the best solution
- Final technical design

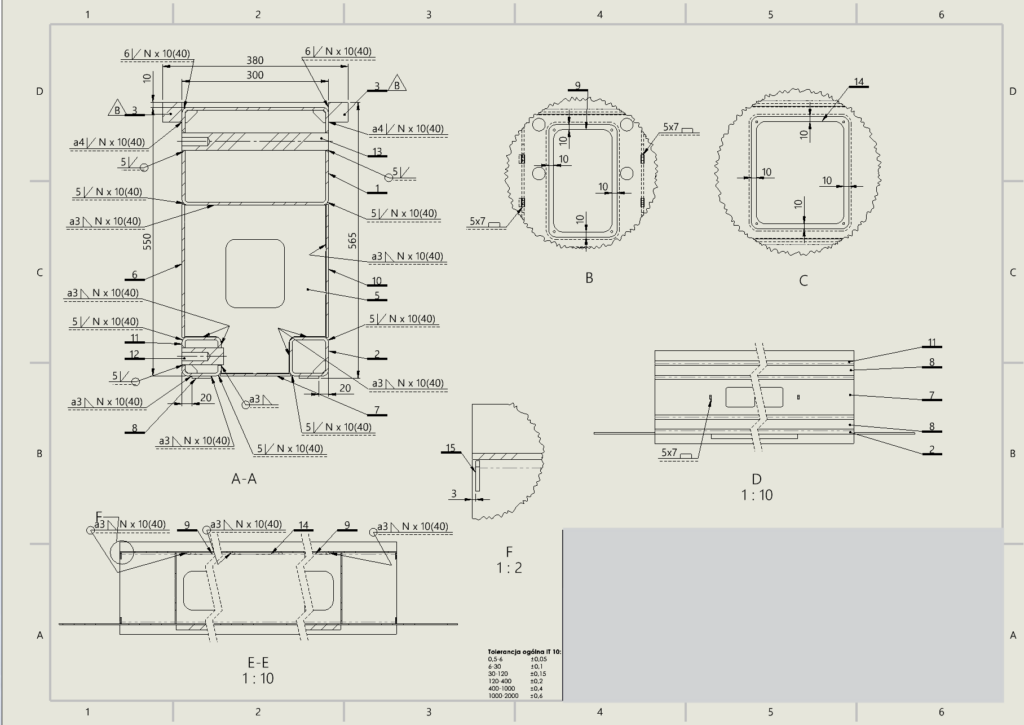

- Preparation of manufacturing drawings with GD&T and welding symbols
- Application of DFM principles for welded structure
